Databricks

This page documents the integration of Anjana Data Platform with Databricks via the tot-plugin-databricks plugin. In its Phase 1, the integration enables the discovery and extraction of technical metadata (read-only mode) of the assets available in Unity Catalog, without performing any mutation on the source system.

Integration model

The tot-plugin-databricks connector integrates with Unity Catalog to discover assets and extract their structured technical metadata, adapting it to the operational metamodel of Anjana Data Platform. It acts as a metadata extractor-type plugin within the Tot architecture: it runs under its orchestration, implements the platform's standard contracts, and returns the information in the required format. The solution is decoupled from the cloud provider (Azure, AWS, and GCP), so that the same code operates against any of them without changes.

The plugin implements the operations defined in the standard interface ExtractMetadataControllerInterface (tot-plugin-lib), corresponding to Tot's two extraction mechanisms: discovery (metadataList) and detail extraction (metadataExtract).

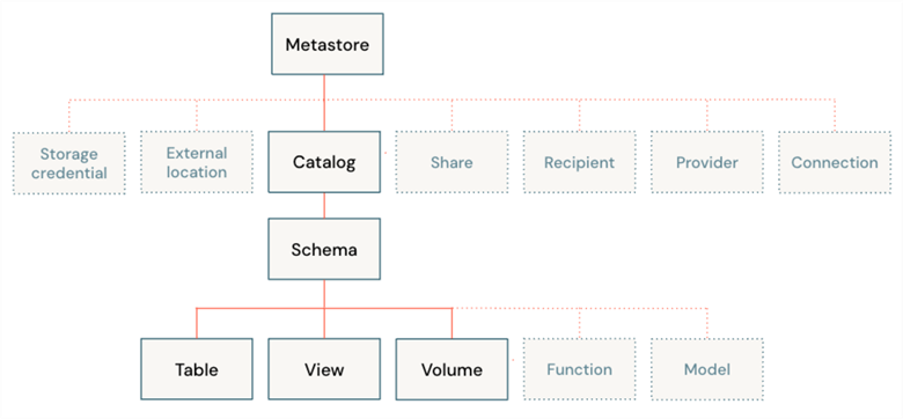

Supported assets

Phase 1 covers the following Unity Catalog asset types:

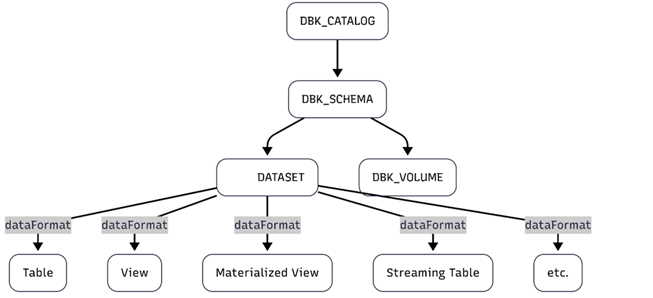

The correspondence between each Unity Catalog asset type and the object subType used to represent it in Anjana is not hard-coded: it is declared in the connector YAML's technology.mapping block. The default values, which it is recom

mended not to modify unless necessary, are:

The resulting subType determines both the depth of the traversal in metadataList and the set of attributes extracted in metadataExtract — for example, only DATASET generates DATASET_FIELDS. These names must match the subType values configured in the Anjana metamodel so that assets are associated with the correct template.

Asset discovery (metadataList)

The metadataList operation discovers and lists the assets available in Unity Catalog, allowing the user to explore the hierarchy and select the assets to import into Anjana Data Platform. The traversal follows Unity Catalog's native hierarchy, and its depth depends on the requested subType:

• DBK_CATALOG, flat list of catalogs (root level).

• DBK_SCHEMA, two-level tree: catalog > schema.

• DATASET, three-level tree: catalog > schema > tabular object (table, view, materialized view, streaming table).

• DBK_VOLUME, three-level tree: catalog > schema > volume.

The listing relies on Unity Catalog's REST APIs (GET /api/2.1/unity-catalog/{catalogs|schemas|tables|volumes}) and applies pagination via max_results and page_token, iterating until next_page_token is exhausted, with a per-operation safety page cap configurable in maxPages (default 1000) to avoid infinite pagination. To limit the cost of massive discovery, the parameters omit_columns=true and omit_properties=true can be used on /tables. The result is returned deterministically sorted by ascending name at each level and deduplicated by technical identifier.

Metadata extraction (metadataExtract)

The metadataExtract operation retrieves the detailed technical metadata of a specific asset, previously selected via metadataList, and transforms it to Anjana's model. The hierarchical path of the asset to extract is parsed using the separator configured in the YAML's pathSeparator and is internally converted to Databricks' fully qualified name (FQN).

For each asset within scope, the plugin retrieves — whenever available via the API — the following metadata:

• physicalName, the asset's fully qualified technical identifier (FQN).

• name, the asset's name.

• path, full hierarchical path (uses pathSeparator).

• description, description when it exists.

• owner, the asset's owner.

• createdAt, creation date (epoch ms), when exposed by the API.

• tags, asset-level tags.

For tabular assets (DATASET), the plugin also retrieves the column structure as DATASET_FIELDS, including name, native data type, position, nullability, description, and column tags. Column numbering is transformed from base 0 (Databricks) to base 1 (Anjana) during mapping. The operation is atomic: it returns the asset's complete result or an error, with no partial results.

Mapping to Anjana attributes

The extracted attributes are mapped to entityAttributes entries in Anjana. The attributes to be created in Anjana's functional configuration must have the following types (the names must match those in the attribute Definition table, name field, for them to appear in the template).

DATASET (Table, View, Materialized View, Streaming Table.. in Databricks)

DATASET_FIELD (Column structure of Databricks tabular entities)

For the fields of tabular assets (DATASET_FIELDS), the following are additionally mapped:

DBK_CATALOG (Catalog in Databricks)

DBK_SCHEMA (Schema in Databricks)

Assets with special characters in the name

Unity Catalog allows characters such as / in asset names. If used, pathSeparator must be configured with a character other than / to guarantee correct construction of the path attribute. Any character except : can be used.

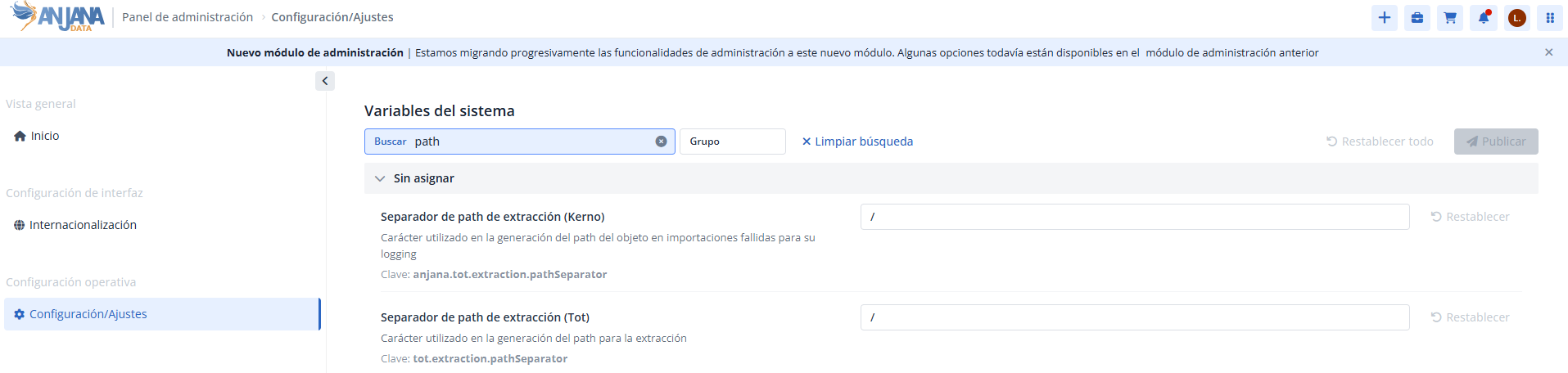

The Databricks plugin's pathSeparator must match that of the rest of the plugins, as well as the extraction path separator of Kerno and Tot.

Required credentials and privileges

Metadata discovery and extraction

The integration requires a Service Principal with read-only permissions on the assets to be governed. It is the client's responsibility to:

• Service Principal, with the read privileges on Unity Catalog required for discovery and metadata extraction in Phase 1 (see the detail in Required privileges in Unity Catalog).

• Governance workspace (playground) and assets accessible to the technical entity used by the plugin (see Provisioning the governance workspace).

• Correct credential configuration in the connector's YAML.

The effective visibility of assets depends on the Service Principal's hierarchical permissions in Unity Catalog and on the configuration of the workspace from which it operates.

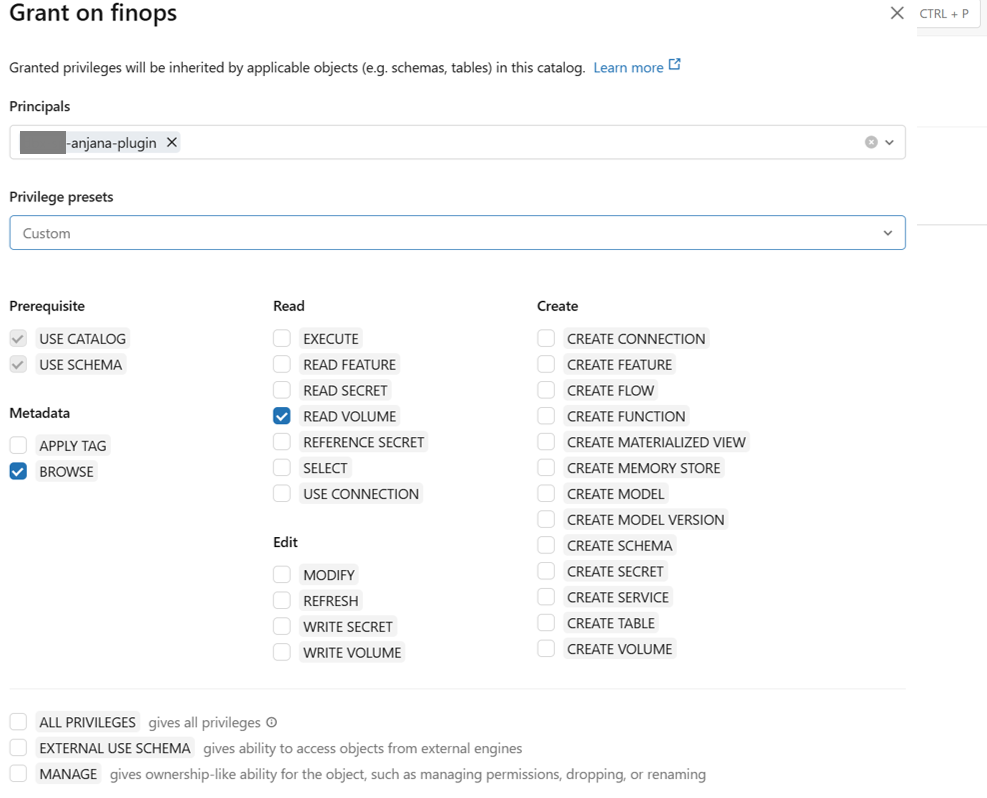

Required privileges in Unity Catalog

Having a Service Principal is not enough: for the Unity Catalog APIs to respond, the identity must have explicitly granted the privileges that allow traversing the hierarchy and reading each asset's metadata. Unity Catalog's privilege model is hierarchical, so reaching a table or a volume requires first being able to traverse its catalog and its schema.

The minimum privileges required by the API are:

In summary, the credential always needs USE CATALOG and USE SCHEMA to navigate the hierarchy, and additionally SELECT on tables or READ VOLUME on the volumes to be governed, depending on the asset type. Since these are hierarchical privileges, they can be granted at the catalog or schema level so that they cascade over the contained objects.

Provisioning the governance workspace (playground)

The plugin always operates from a Databricks workspace, so its provisioning is a prerequisite as critical as the credentials themselves. It is the client's responsibility to have a governance workspace — commonly called a playground — that acts as the plugin's single point of access to Unity Catalog.

For discovery and extraction to work, that workspace must meet two conditions:

• Service Principal enablement, the technical identity used by the plugin must be registered and enabled in the governance workspace.

• Asset accessibility, the catalogs and assets to be governed must be bound and accessible from that workspace. In Unity Catalog, a catalog not bound to the workspace is not visible even if the Service Principal has privileges on it.

The effective visibility of an asset is, therefore, the intersection of two independent conditions: that the Service Principal has the Unity Catalog privileges described in the previous section, and that the asset is accessible from the governance workspace. If either is missing, the asset will not appear in discovery.

Authentication and authorization

The plugin authenticates against Databricks using OAuth 2.0 Client Credentials with Service Principal. The difference between cloud providers is limited to how the Bearer Token is obtained; the functional logic remains decoupled and the strategy is resolved through configuration via the YAML's authType parameter. Personal tokens (PAT) and user credentials are not supported.

The connection and authentication parameters are defined in technology.credential within each connection of the connector's YAML:

Databricks OAuth M2M (primary strategy)

Databricks exposes a native OIDC provider in each workspace, from which the plugin requests the token directly (POST {host}/oidc/v1/token). It is the recommended strategy because it works the same way on Azure, AWS, and GCP, only requires host, clientId, and clientSecret, and does not depend on external providers. It is selected with authType: "databricks-oauth".

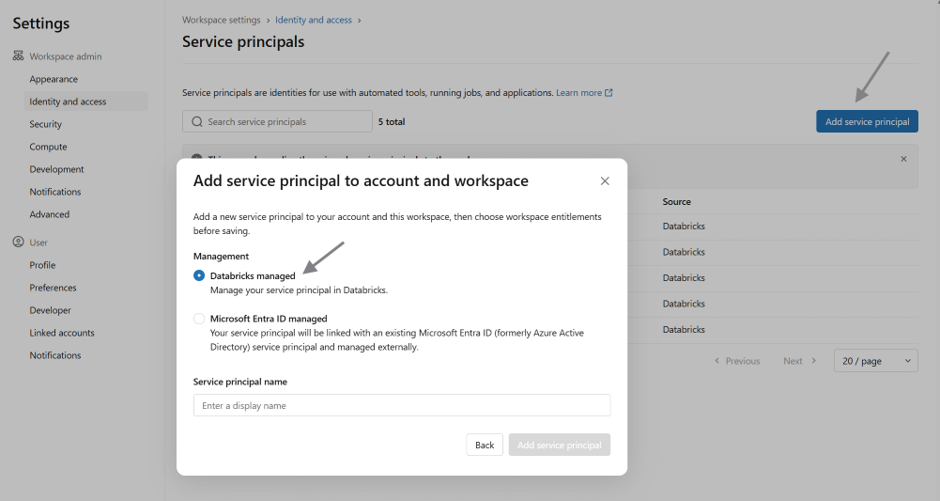

Step 1: Create the Service Principal in Databricks

• Access Databricks Account Console → User Management → Service Principals.
• Create a new Service Principal

More detail in the official Azure Databricks documentation: https://learn.microsoft.com/en-us/azure/databricks/dev-tools/auth/oauth-m2m

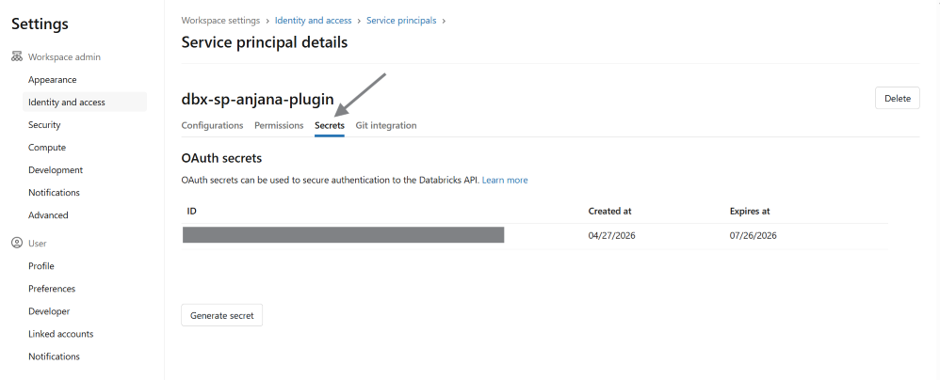

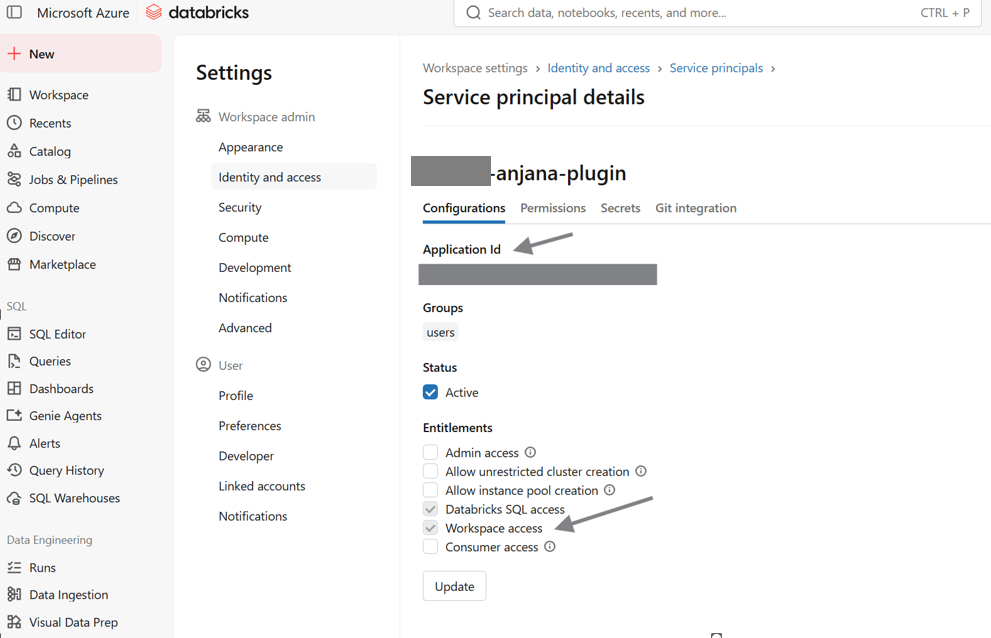

Step 2: Generate OAuth credentials

• Generate an OAuth Secret for the Service Principal.

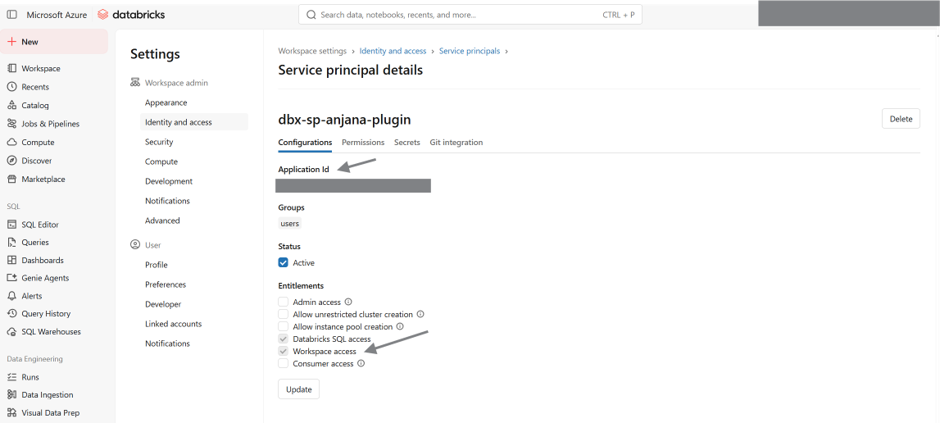

• Note down the following values to add to the YAML:

  • clientId (application Id)

  • clientSecret (create an authentication secret in the Secrets section)

Step 3: Grant minimum privileges on Unity Catalog assets

Grant the privileges indicated in Required privileges in Unity Catalog.

Step 4: Configure the plugin's YAML

Add to the YAML:

• Authorization type authType: "databricks-oauth"

• Host

• Client ID / Application Id (obtained in Databricks Account in Step 2)

• Client Secret (obtained in Databricks Account in Step 2)

Azure Entra ID (alternative strategy)

Authentication via Azure Entra ID Service Principal (POST https://login.microsoftonline.com/{tenant}/oauth2/v2.0/token), recommended in exclusively Azure environments that want to reuse an existing identity. It is selected with authType: "azure-sp" and additionally requires the tenant.

The connection and authentication parameters are defined in technology.credential within each connection of the connector's YAML:

Step 1: Create an App Registration in Microsoft Entra ID

• Microsoft Entra ID → App registrations.
• Register a new application.

Step 2: Create a Client Secret

• Generate a Client Secret.

• Note down the following values to add to the YAML:

  • tenantId

  • clientId

  • clientSecret

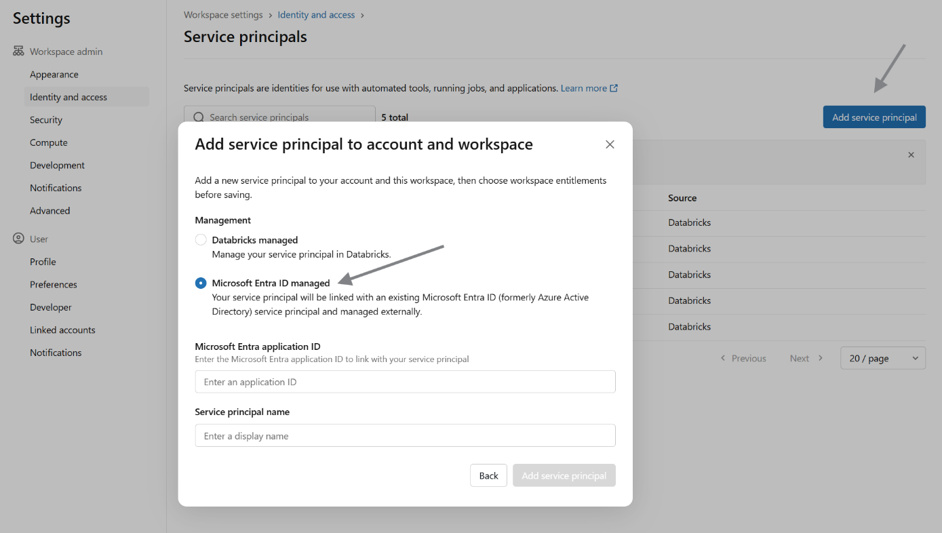

Step 3: Register the Service Principal in Databricks

Register the Entra ID application as a Service Principal in Databricks (Account Console or via SCIM/API, depending on the environment's administration) and follow the rest of the steps required by the configuration to register the Service Principal within Databricks

More information at: https://learn.microsoft.com/en-us/azure/databricks/admin/users-groups/manage-service-principals

Step 4: Assign the Service Principal to the Workspace

Add the Service Principal to the corresponding Workspace

Step 5: Grant minimum permissions

Grant the privileges indicated in Required privileges in Unity Catalog.

Step 6: Configure the plugin's YAML

Add to the YAML:

• Authorization type authType: "azure-sp"

• Host

• Tenant (obtained in Azure in Step 2)

• Client ID / Application Id (obtained in Azure in Step 2)

• Client Secret (obtained in Azure in Step 2)

Error handling and retries

The plugin distinguishes between functional errors (input validation, unsupported subType, incorrect element format), which are not retried, and transient technical errors (network, HTTP 5xx, throttling), which are retried according to a configurable policy. In metadataList, partial errors per scope (catalog/schema) are tolerated to maximize discovery coverage; in metadataExtract, partial results are not allowed.

The retry policy is defined per connection via databricksCountRetry (maximum number of retries) and databricksWaitRetry (base wait, in seconds, between retries). On 429 errors with a Retry-After header, the plugin honors that value; in its absence, it applies exponential back-off starting from databricksWaitRetry.

Configuration

Connectivity

The plugin's connectivity is established against the Unity Catalog REST APIs (/api/2.1/unity-catalog/...) over the host of the Databricks workspace. Domains vary depending on the cloud:

• Azure: https://adb-xxxx.azuredatabricks.net

• AWS: https://xxxx.cloud.databricks.com

• GCP: https://xxxx.gcp.databricks.com

Multi-connection

The plugin supports multiple connections to different Databricks workspaces or environments. Each connection is uniquely identified by the infrastructure / technology / zone triple (ARI model), where zone acts as a logical discriminator. It is recommended to configure a workspace dedicated to governance (playground) as a central access point under a single ARI.

The separator that Anjana uses to retrieve the values of a list-type attribute (for example, tags) is controlled via attributeSeparator. It is not normally necessary to modify it.

Performance and limits

The plugin regulates the load it places on the Unity Catalog APIs through two YAML blocks, with reasonable default values that normally do not require adjustment:

• rate-limit, limits the rate of calls with requests-per-second (requests per second) and timeout-seconds (maximum wait time per request).

• concurrency, controls the parallelism of discovery and tag retrieval via listing-threads and listing-batch-size (listing) and tags-threads and tags-batch-size (tags).

Additionally, maxPages limits the maximum number of pages per operation (default 1000), as a safeguard against unbounded pagination.

Appendix

More information about the APIs:

https://docs.databricks.com/api/workspace/catalogs/list

https://docs.databricks.com/api/workspace/schemas/list

https://docs.databricks.com/api/workspace/tables/list

https://docs.databricks.com/api/workspace/volumes/list

https://docs.databricks.com/api/workspace/catalogs/list

https://docs.databricks.com/api/workspace/schemas/list

https://docs.databricks.com/api/workspace/tables/list

https://docs.databricks.com/api/workspace/volumes/list
