Integration Model

Metadata Extraction

The methods provided by the Glue API are used to access the definition of databases and tables.

It extracts the following attributes, which must be named the same in the attribute_definition table, name field, so that they appear in the template.

Attribute name	Attribute type	Description
physicalName, name	INPUT_TEXT	Table name
dataBase	INPUT_TEXT	Database name
description	INPUT_TEXT	Table description
path	INPUT_TEXT	Path to the object, using the pathSeparator property as separator
infrastructure	SELECT	Anjana attribute used to extract the table
technology	SELECT	Anjana attribute used to extract the table
zone	SELECT	Anjana attribute used to extract the table
data_format	INPUT_TEXT	Data format of the table
compressed	INPUT_CHECKBOX	Whether the table data is compressed
partitionKeys	ARRAY_ALPHANUMERICAL	The partition key(s) of the table, if it has been partitioned. It will arrive as a single String using "_-" as separator between values
tableCreatedTime	INPUT_DATE	Table creation date
datasourceLocation	INPUT_TEXT	Source of the table's data
datasourceInputFormat	INPUT_TEXT	Format of the source data of the table
serializationLibrary	INPUT_TEXT	Library used in the creation and update of the table
tableType	INPUT_TEXT	Table type
tableVersion	INPUT_TEXT	Table version
catalogId	INPUT_TEXT	ID of the catalog where the table is located

All extra parameters present in the table's metadata will be included.

It will also send the following attributes related to the fields of the requested resource:

Attribute name	Attribute type	Description
physicalName, name	INPUT_TEXT	Column name of the table
description	INPUT_TEXT	Description of the column of the table
fieldDataType	INPUT_TEXT	Data type of the column of the table
pk	INPUT_CHECKBOX	Whether the column is the primary key of the table
position	INPUT_NUMBER	Position of the column in the table

All extra parameters present in the column's metadata will be included.

The plugin is able to extract metadata from the following types of elements:

Tables from the different databases hosted in the service; always in the same format as it appears in Glue, never in the format of the location of the generated files (S3).

Tables with characters in the name

This technology allows characters such as "/" in the name; if they are being used, the path-separator must be configured with a character other than "/". See File extraction for more details.

Required Credentials

Metadata Extraction

A user with read permissions on the Glue service is required. Among the read permissions*, the following are necessary:

glue:SearchTables
glue:GetConnection
glue:GetTable
glue:GetTables
glue:GetDatabases
glue:GetPartitions

Note: These are the minimum permissions for Amazon Glue to work correctly. Each technology that Glue goes through to obtain the data may require its own permissions in Glue.

If metadata extraction is desired, a connection with Amazon Glue is required. To establish this connection, an accessKey and a secretKey from the AWS IAM account are required. In addition, the region in which it is located is required.

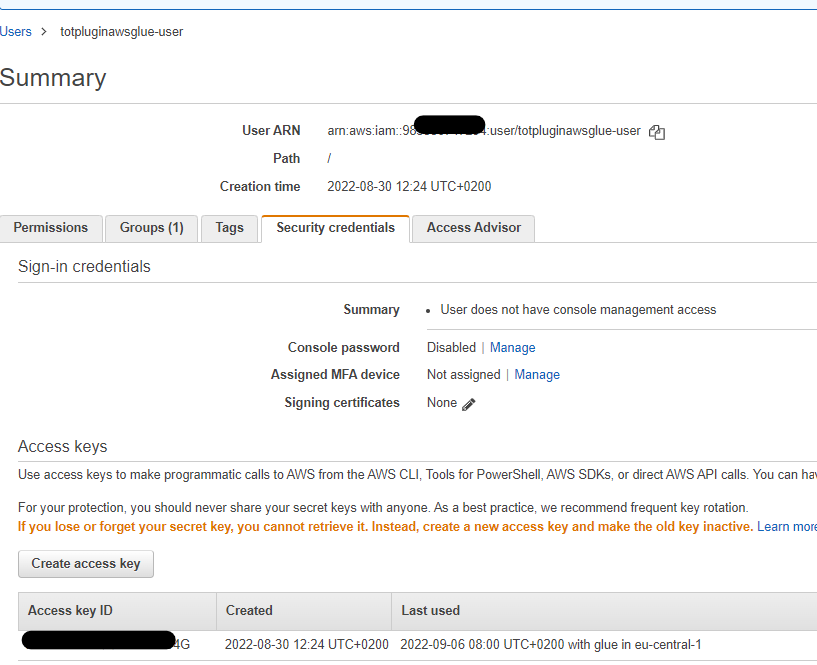

In order to obtain the accesskey and secretkey needed for the installation, a user must be created in AWS IAM and, in the security credentials tab, access keys must be created, which will be entered in the configuration yaml.

An AWS policy must be created and assigned to the group where the user is located.
It must be as follows:

JSON

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "glue:SearchTables",
                "glue:GetTable",
                "glue:GetConnection",
                "glue:GetTables",
                "glue:GetPartitions",
                "glue:GetPartition",
                "glue:GetDatabases"
            ],
            "Resource": "*"
        }
    ]
}
