Batch Configuration

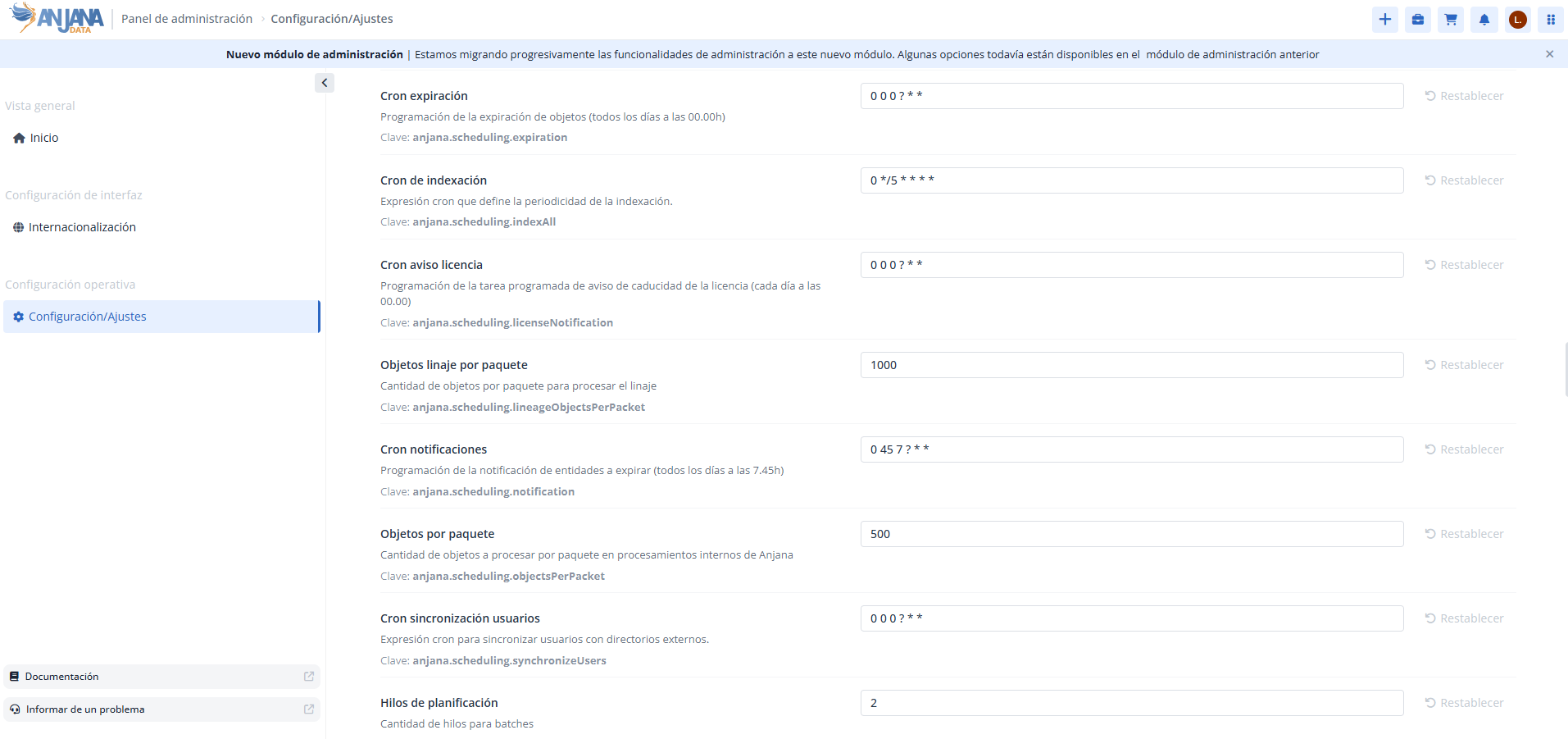

Within the Anjana Data Platform there are multiple batch processes that run automatically and unattended according to the frequency configured in the system variables table (Configuration/Settings) of the new Administration module. Some examples are the user synchronization batch or the expiration batch. To find out what each batch does, see the Batches guide.

To configure the schedule, Spring cron expressions are used. These expressions are made up of 6 elements that determine the execution frequency:

• The first element refers to seconds (it can take values between 0 and 59).

  • It accepts * to indicate that it runs for all possible values.

• The second element refers to minutes (it can take values between 0 and 59).

  • It accepts * to indicate that it runs for all possible values.

• The third element refers to hours (it can take values between 0 and 23).

  • It accepts * to indicate that it runs for all possible values.

• The fourth element refers to the day of the month (it can take values between 1 and 31).

  • It accepts ? to leave the field free if the day of the week has already been defined.

  • It accepts * to indicate that it runs for all possible values.

• The fifth element refers to the month of the year (it can take values between 1 and 12).

  • It accepts * to indicate that it runs for all possible values.

• The sixth element refers to the day of the week (it can take values between 0 and 7 , both 0 and 7 represent Sunday, the other numbers range from 1=Monday to 6=Saturday).

  • It accepts ? to leave the field free if the day of the month has already been defined.

  • It accepts * to indicate that it runs for all possible values.

Other conventions followed:

• Commas can be used to separate the elements of a list (for example: 1,15, the 1st and the 15th).

• The - can be used to express a range of elements (for example: 8-10, from 8 to 10, both inclusive). The range always includes the endpoints.

For more examples, see the official documentation: Spring Cron Expressions.

Batch configuration summary

Each batch is scheduled via its anjana.scheduling.* property and runs on a specific service, which is the one that must be restarted for a scheduling change to take effect:

License notice

Service: Zeus.

The batch for the notice of a license about to expire, via the property:

anjana.scheduling.licenseNotification is used to configure the scheduled task to send notifications for a license about to expire or already expired (default = 0 0 0 ? * * ).

User synchronization

Service: Zeus.

The batch for synchronizing users from providers to the Anjana Data database, via the property:

anjana.scheduling.synchronizeUsers is used to configure the scheduled task to synchronize in the database the users coming from the authentication providers (default = 0 0 0 ? * * ).

Expiration

Service: Kerno.

The expiration batch is configured via the property:

anjana.scheduling.expiration is used to configure the expiration of objects (default: 0 45 7 ? * *).

Expiration pre-notice (notifications)

Service: Kerno.

The expiration pre-notice batch is configured via the properties:

• anjana.scheduling.notification is used to configure the notification of objects about to expire (default: 0 45 7 ? * *).

• anjana.notification.expiration is used to configure, in number of days, the objects that will expire within that range (default: 4).

Full indexing

Service: Kerno.

The batch for indexing all objects (entities and relationships) is configured via the following property:

anjana.scheduling.indexAll is used if you want to configure the periodic indexing of all the application's objects (with the exceptions mentioned in the User Guide). This setting is disabled by default.

This section is primarily intended for technical and functional administrators responsible for the configuration and maintenance of the Anjana Data Platform.
