Metamodel - Entities and Relationships

The metamodel configuration in Anjana Data allows adapting and extending the structure of entities and relationships beyond the native metamodel. Through the Configuration Panel, the administrator can define new entity subtypes (for example, BUSINESS TERM, AI SYSTEM, AI MODEL) and relationship subtypes (for example, TRAINED_WITH, GOVERNS, USED_BY) that represent the reality of the organization.

The following image shows an example of an extended metamodel, in which native entities and relationships are combined with customized ones, reflecting the complexity of data assets and their links within the organization:

These entity and relationship subtypes form the basis for:

• Consistently documenting the different data assets.

• Establishing dependency, hierarchy and governance relationships between them.

• Integrating governance processes with configurable workflows for creation, modification, transfer, deprecation and validation of such assets.

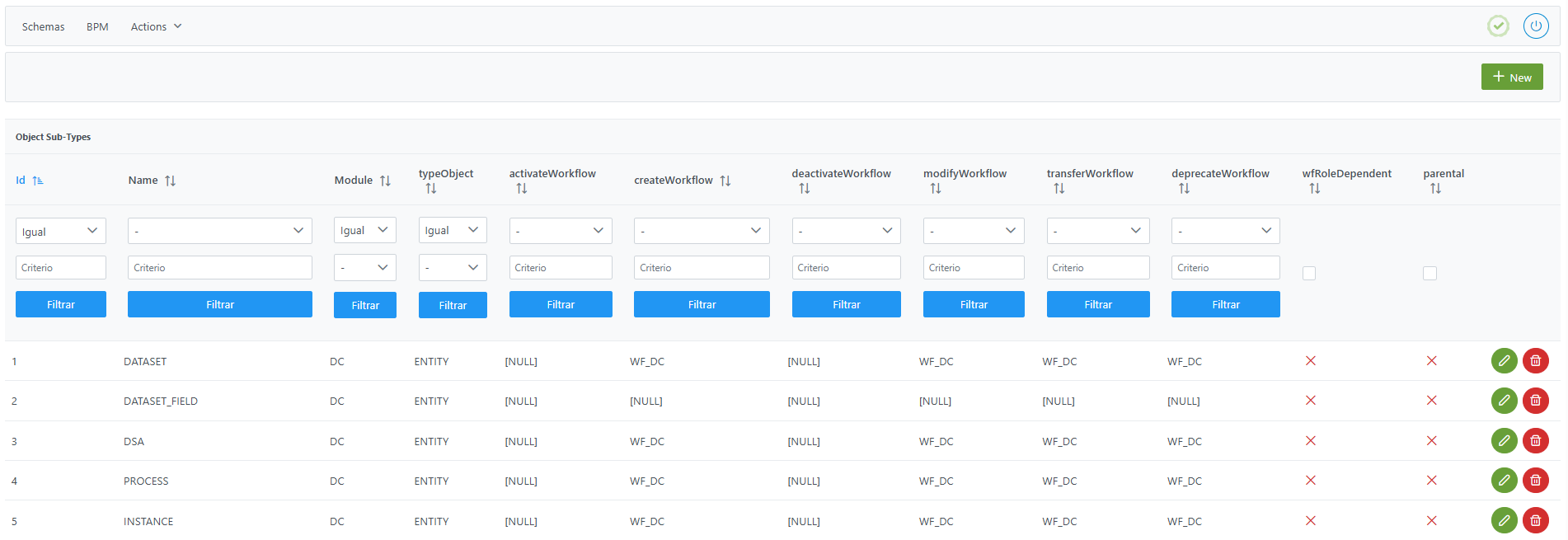

Table Object Sub-types in the Configuration Panel (Administrator view)

The Object Sub-types table is the central point where the entities and relationships of the metamodel are configured. Each registered object subtype is characterized by the following fields:

Structure of the Object Sub-types table

Each entity or relationship to be governed is characterized by the following fields:

• id: unique identifier of the object subtype.

  • It is assigned automatically from the Configuration Panel, based on database sequences.

• name: name of the object subtype.

  • This value must be unique within the module and cannot be repeated among existing entities or relationships.

• module: module to which the object belongs.

  • "BG" → Business Glossary

  • "DC" → Data Catalog

• typeObject: indicates whether the subtype corresponds to an entity or a relationship.

  • "ENTITY" → Metamodel entity (example: DATASET, REPORT, DOCUMENT).

  • "RELATIONSHIP" → Relationship between entities (example: TRAINED_WITH, USED_BY, GOVERNS).

• activate_workflow: name of the identifier of the activation workflow for non-native entities or relationships.

• create_workflow: name of the identifier of the creation workflow.

• deactivate_workflow: name of the identifier of the deactivation workflow for non-native entities or relationships.

• modify_workflow: name of the identifier of the editing or modification workflow.

• transfer_workflow: name of the identifier of the workflow that manages the transfer (change of organizational unit) of entities.

• deprecate_workflow: name of the identifier of the deprecation workflow for native Data Catalog entities.

• wf_role_dependent: indicator that defines whether differentiated workflows by role exist for the same action.

  • When this flag is enabled, for each of the actions configured in the previous fields (create_workflow, modify_workflow, transfer_workflow, deprecate_workflow, etc.) it is necessary to define a role-specific workflow that has permissions to trigger that action.

  • The identifier of each role-specific workflow is constructed from the base workflow identifier, concatenated with the role name in the Roles table using the format:

    <id_workflow_base>_-<role_name>


  • Example: if the base creation workflow identifier is CREATE_DATASET and the role name is DataSteward, the identifier will be CREATE_DATASET_-DataSteward.

• parental: applies only in case of a relationship.

  • If the value is true, the relationship is considered a parent-child relationship and will be represented vertically (top-bottom) in the lineage.

  • If false, the relationship is considered an input-output relationship, represented horizontally (left-right).

Adding an entity to the Object Sub-types table

Adding a new entity to the metamodel involves registering a new record in the Object Sub-types table with type ENTITY.

To add a new entity:

1. Click the New button in the top right corner. This will open a wizard with the fields defined in the Structure of the Object Sub-types table section.

2. Fill in the corresponding fields:

   • name: name of the entity (example: AI_MODEL).

   • module: module in which it will be used (example: DC).

   • object_type: select ENTITY.

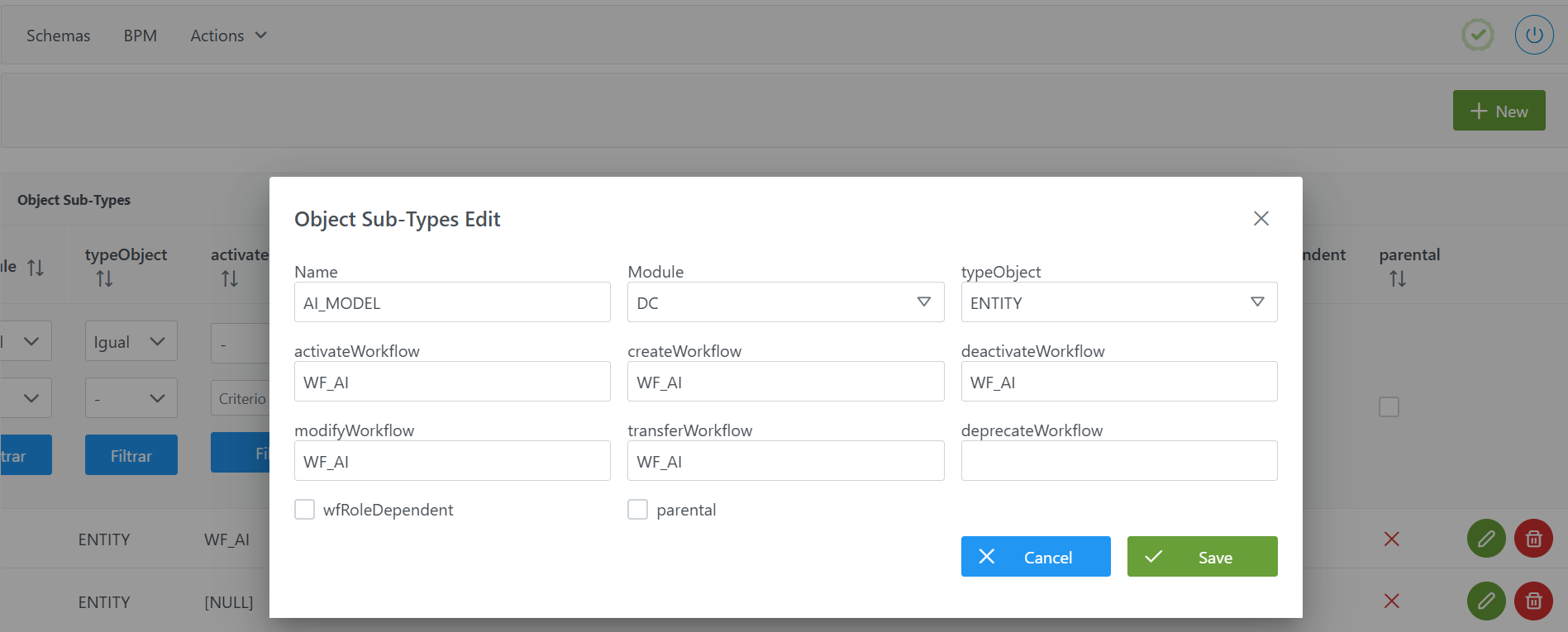

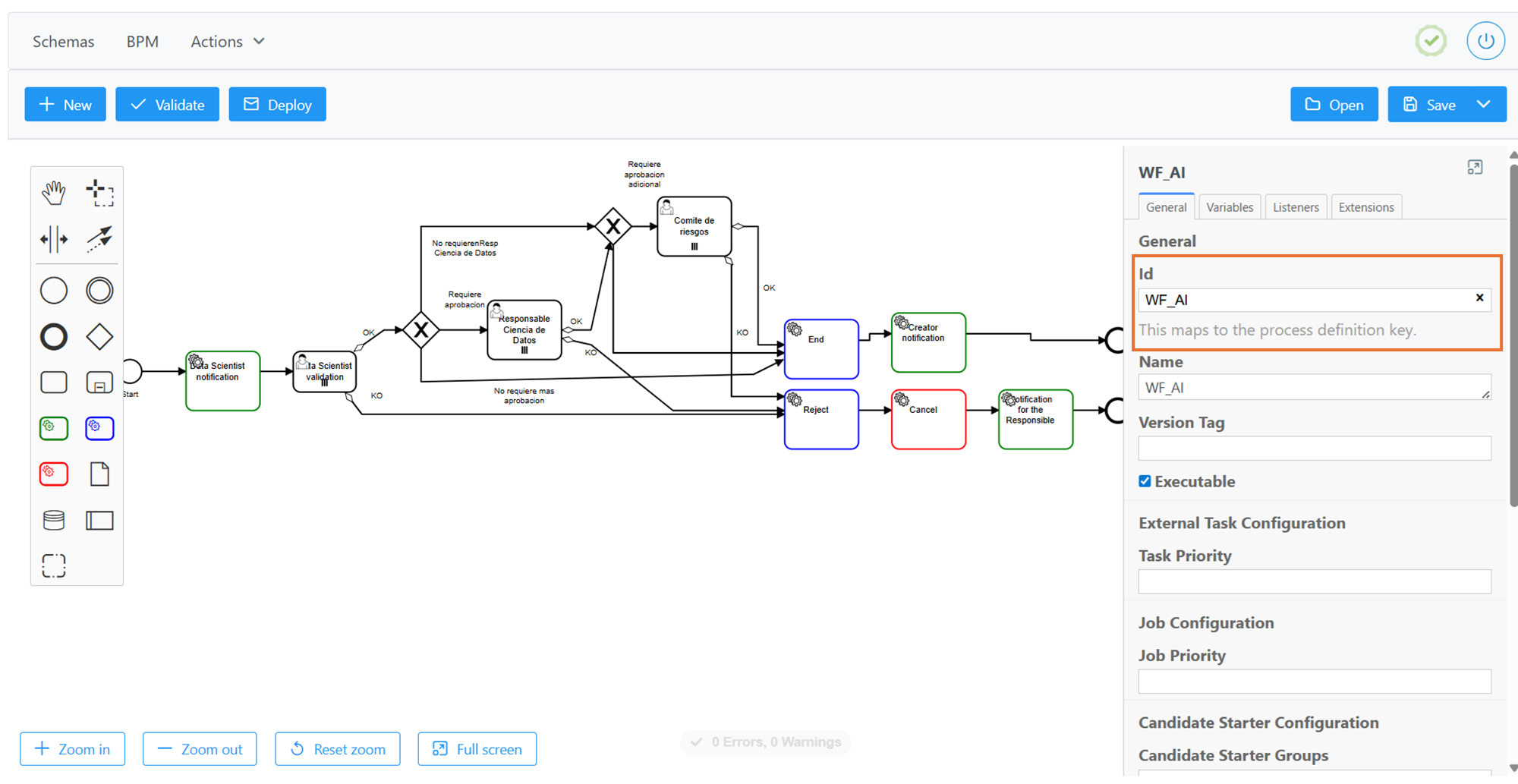

   • Define the identifier names of the workflows associated with the actions:

     • create_workflow: Identifier of the creation workflow (example: WF_AI).

     • modify_workflow: Identifier of the modification workflow (example: WF_AI).

     • activate_workflow: Identifier of the activation workflow, does not apply to native entities (example: WF_AI).

     • activate_workflow: Identifier of the activation workflow, does not apply to native entities (example: WF_AI).

     • deactivate_workflow: Identifier of the deactivation workflow, does not apply to native entities (example: WF_AI).

     • transfer_workflow: Identifier of the organizational unit change workflow (example: WF_AI).

     • deprecate_workflow: Identifier of the deprecation workflow, does not apply to non-native entities (example: left empty as it is a non-native entity)

   • wf_role_dependent: check only if you want to configure different workflows for each of the above workflows.

3. Click Save to save the entity or Cancel to discard it.

Adding a relationship to the Object Sub-types table

Adding a new relationship to the metamodel involves registering a new record in the Object Sub-types table with type RELATIONSHIP.

To add a new relationship:

1. Click the New button in the top right corner. This will open a wizard with the fields defined in the Structure of the Object Sub-types table section.

2. Fill in the corresponding fields:

   • name: name of the relationship (example: COMPOSED_OF).

   • module: module in which it will be used (example: DC).

   • object_type: select RELATIONSHIP.

   • Define the identifier names of the workflows associated with the actions:

     • create_workflow: Identifier of the creation workflow (example: WF_AI).

     • modify_workflow: Identifier of the modification workflow (example: WF_AI).

     • activate_workflow: Identifier of the activation workflow, does not apply to native relationships (example: WF_AI).

     • deactivate_workflow: Identifier of the deactivation workflow, does not apply to native relationships (example: WF_AI).

     • transfer_workflow: Identifier of the organizational unit change workflow (example: WF_AI).

     • deprecate_workflow: Identifier of the deprecation workflow, does not apply to non-native relationships (left empty in that case).

   • wfRoleDependent: check only if you want to configure different workflows for each of the above workflows based on the user's role (left unchecked in the example).

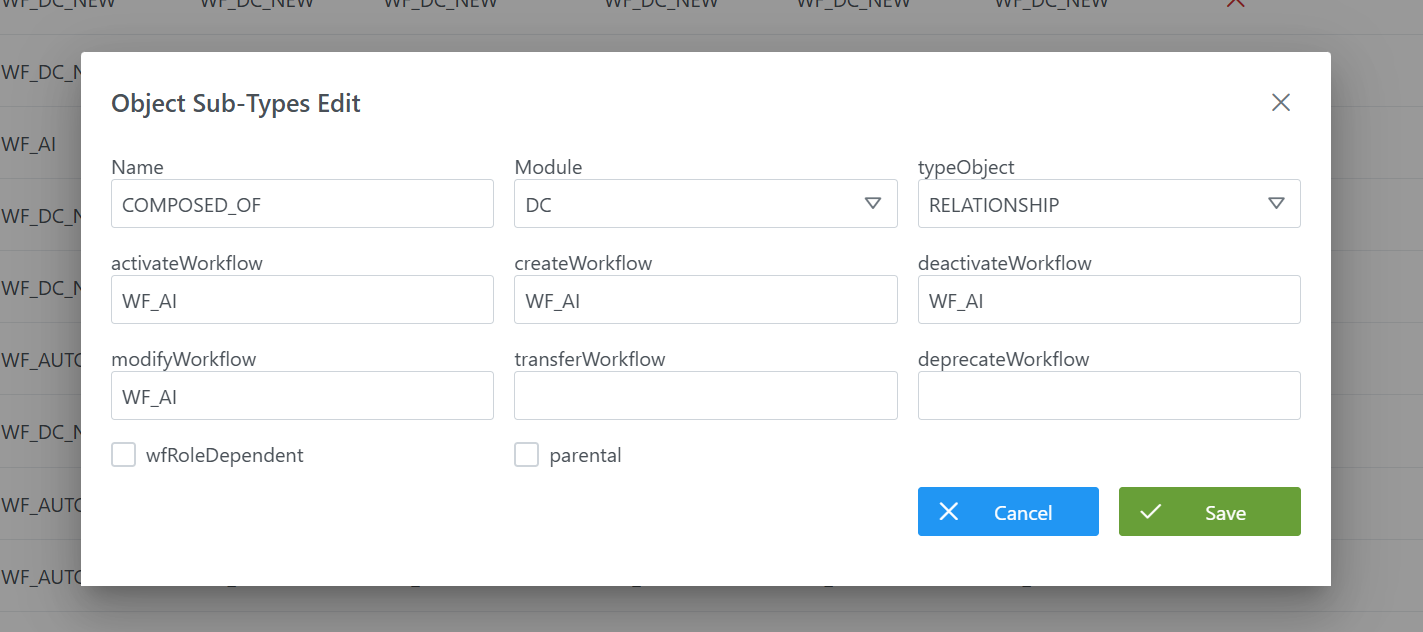

   • parental: check if the relationship should be represented in the lineage as a parent-child relationship (parent-child, vertical). Leave unchecked if the relationship is of input-output type (horizontal). (Left unchecked in the example)

3. Click Save to save the relationship or Cancel to discard it.

Modifying an entity or relationship in the Object Sub-types table

Modifying an object subtype (whether an entity or a relationship) is managed directly from the Object Sub-types table in the Configuration Panel.

When editing a subtype, the following considerations are important:

• Fields that can be modified:

  • The workflow identifiers (create_workflow, modify_workflow, transfer_workflow, deprecate_workflow, etc.).

  • The parental and wf_role_dependent flags, which can be enabled or disabled at any time depending on lineage display needs or differentiated workflow management by role.

• Fields that cannot be modified once objects governed in the Data Portal exist associated with that subtype:

  • typeObject (ENTITY or RELATIONSHIP).

  • name of the subtype.

Configuring object subtypes via direct database access (Developer view)

The database (DB) table that contains the parameters for the entities and relationships of the metamodel (anjana.object_subtype) has this structure:

Below is a sample script for configuring the AI_MODEL entity:

INSERT INTO anjana.object_subtype
(id_object_subtype, activate_workflow, create_workflow, deactivate_workflow, deprecate_workflow, modify_workflow, "module", "name", object_type, transfer_workflow, wf_role_dependent, is_parental)
VALUES(32, 'WF_AI', 'WF_AI', 'WF_AI', 'WF_AI', 'WF_AI', 'DC', 'AI_MODEL', 'ENTITY', 'WF_AI', false, false);

Below is a sample script for configuring the COMPOSED_OF relationship:

INSERT INTO anjana.object_subtype
(id_object_subtype, module, name, object_type, create_workflow, modify_workflow, activate_workflow, deactivate_workflow, wf_role_dependent, is_parental)
VALUES
(102, 'DC', 'COMPOSED_OF', 'RELATIONSHIP', 'WF_AI', 'WF_AI', 'WF_AI', 'WF_AI', false, false);
