System Variables | Anjana Data Documentación

This page documents the system variables configured in the App Configuration table. These variables are loaded by each module (Kerno, Hermes, Minerva, Zeus…) at startup and allow defining global behaviors such as validation limits, queue configurations, connections, batch process scheduling, internationalization, among others.

The correct management of these properties is fundamental for the operation of Anjana Data, both for administrators and developers.

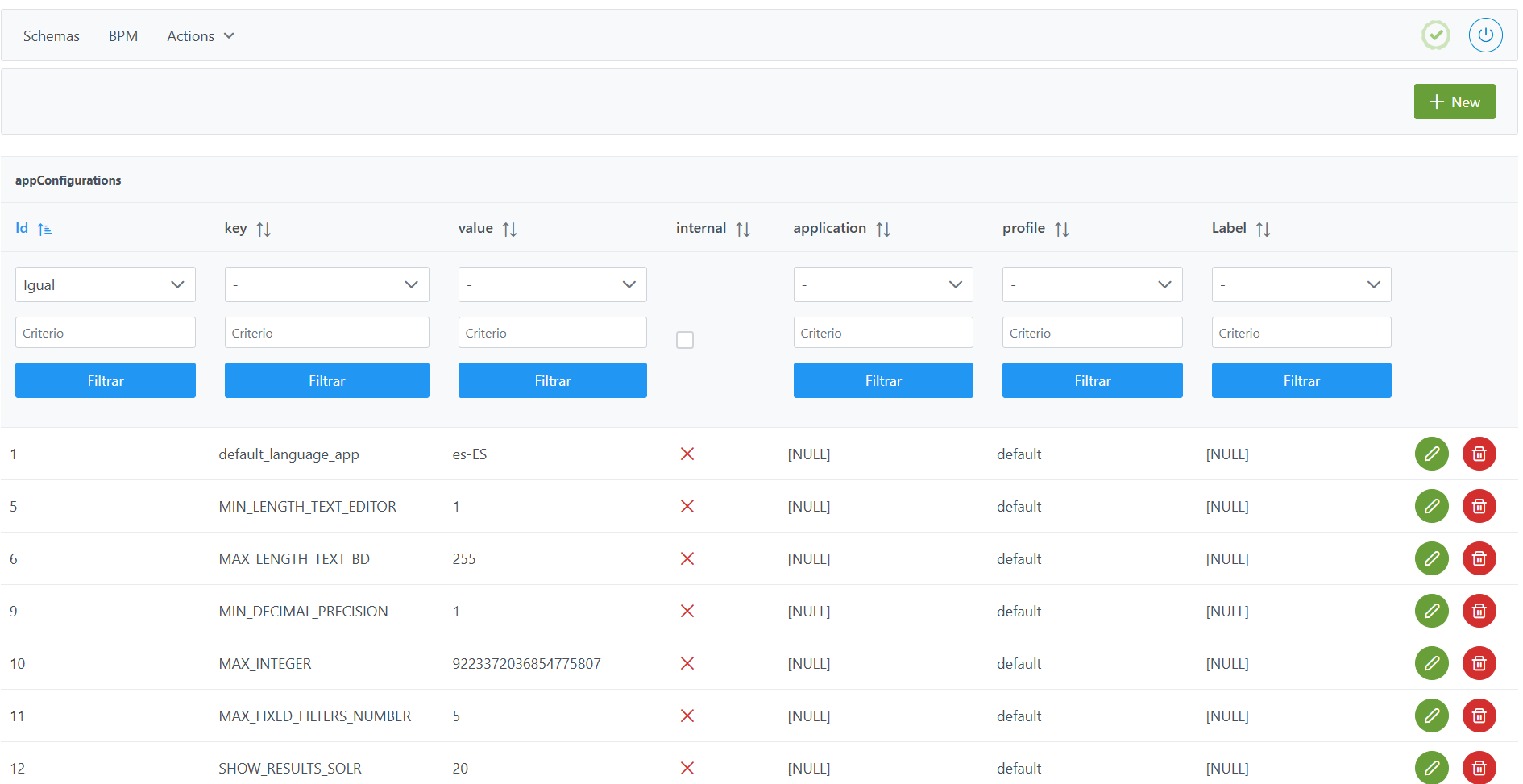

Table AppConfiguration in the Configuration Panel (Administrator view)

The system variables configured in the App Configuration table.

Table *AppConfiguration* where system variables are configured

Structure of the `AppConfiguration` table

Each registered variable is characterized by the following elements:

Id: unique table identifier. It is automatically assigned from the Configuration Panel.
Key: property to be configured according to the available variables table.
Value: value assigned to the property indicated in the key field.
Internal: boolean indicating whether the property is visible from the public API (if internal = false, it must not be displayed in plain text).
Application: module to which it applies (kerno, hermes, minerva, zeus or null → applies to all). To assign the correct value, refer to the available variables table.
Profile: execution profile in which the configured value applies.
Label: informational field to organize variables.

Available variables table

The following table shows all available system variables.

key	value	application	description
anjana.activiti.data	true	hermes	Flag to import WFs on Hermes startup
anjana.activiti.input	DC_WF, BG_WF	hermes	Folders to use for importing WFs. If a new folder is created in the BPM editor of the Configuration Panel to store workflows, it must be included in the `Value` field of this record.
anjana.activiti.output	/data/WF	hermes	Temporary path of the file directory for processing WFs
anjana.async.db.corePoolSize	5	kerno	Database connection pool size
anjana.async.db.maxPoolSize	20	kerno	Maximum database connection pool size
anjana.async.db.queueCapacity	100	kerno	Queue size for database executions
anjana.async.hermes.corePoolSize	5	kerno	Thread pool size for Hermes executions
anjana.async.hermes.maxPoolSize	10	kerno	Maximum thread pool size for Hermes executions
anjana.async.hermes.queueCapacity	1000	kerno	Queue size for Hermes executions
anjana.async.minerva.corePoolSize	5	kerno	Thread pool size for Minerva executions
anjana.async.minerva.maxPoolSize	20	kerno	Maximum thread pool size for Minerva executions
anjana.async.minerva.queueCapacity	100	kerno	Queue size for Minerva executions
anjana.async.pool.corePoolSize	5	hermes	Hermes asynchronous processing pool size
anjana.async.pool.maxPoolSize	20	hermes	Maximum Hermes asynchronous processing pool size
anjana.async.pool.queueCapacity	100	hermes	Hermes processing queue size
anjana.combinations.max	10	kerno	Maximum number of combinations to display in the adherence cart
anjana.expiration.days	7	kerno	Number of days added to the current date to set as the expiration date for the object that is deprecated when versioned via Excel
anjana.group.enableCrossGrouping	true	zeus	Enables grouping of Cross role OUs into a single OU called “Cross”
anjana.internationalization.separatorNameColumnsExcel	_	kerno	Character to use as a separator for multi-valued attribute values in Excel
anjana.last-execution.maxRetry	0	hermes	Number of retries in LastExecution steps of WFs, where 0 means infinite retries
anjana.last-execution.waitRetry	300	hermes	Wait time between retries in LastExecution steps of WFs
anjana.mail.aws[0]	email	zeus	Provider property from which to retrieve the email; multiple values can be set by numbering the properties with ‘[number]’ (see anjana.mail.azure[x] or anjana.mail.google[x] properties)
anjana.mail.azure[0]	mail	zeus	Provider property from which to retrieve the email; multiple values can be set by numbering the properties with ‘[number]’
anjana.mail.azure[1]	otherMails	zeus	Provider property from which to retrieve the email; multiple values can be set by numbering the properties with ‘[number]’
anjana.mail.azure[2]	userPrincipalName	zeus	Provider property from which to retrieve the email; multiple values can be set by numbering the properties with ‘[number]’
anjana.mail.db[0]	email	zeus	Provider property from which to retrieve the email; multiple values can be set by numbering the properties with ‘[number]’
anjana.mail.google[0]	primaryEmail	zeus	Provider property from which to retrieve the email; multiple values can be set by numbering the properties with ‘[number]’
anjana.mail.google[1]	emails	zeus	Provider property from which to retrieve the email; multiple values can be set by numbering the properties with ‘[number]’
anjana.mail.ldap[0]	mail	zeus	Provider property from which to retrieve the email; multiple values can be set by numbering the properties with ‘[number]’
anjana.notification.expiration	4	kerno	Number of advance notice days for notifications indicating the upcoming expiration of an object
anjana.numberDatasetFieldsForWarning	100	kerno	Number of dataset_fields to consider a Dataset as large, in which case actions performed by users will redirect them to the Portal instead of making them wait for completion
anjana.numberEntitiesToSubmit	50	kerno	Number of entities to send for validation at once during Excel import
anjana.provider.primary	Database	zeus	Property to indicate whether a primary provider should be pre-selected on login screens and which one it should be. This value must match the security.authentication.<provider> property and the name of the chosen provider instance. For database and Ldap the values are ‘Database’ and ‘Ldap’ respectively.
anjana.retries	5	kerno	Retries in case of communication failure during reindexing
anjana.role.defaultRole	default		Role applied to users when registering in Anjana. Allows access to users without a specified role in the application.
anjana.scheduling.enabled	true	kerno	Flag to enable Kerno batches
anjana.scheduling.expiration	0 0 0 ? * *	kerno	Scheduling of object expiration (every day at 00:00h)
anjana.scheduling.licenseNotification	0 0 0 ? * *	zeus	Scheduling of the license expiration warning scheduled task (every day at 00:00)
anjana.scheduling.lineageObjectsPerPacket	1000	kerno	Number of objects per packet for processing lineage
anjana.scheduling.notification	0 45 7 ? * *	kerno	Scheduling of the notification for entities about to expire (every day at 7:45h)
anjana.scheduling.notification	0 0 0 ? * *	zeus	Scheduling of the cross role review scheduled task
anjana.scheduling.objectsPerPacket	500	kerno	Number of objects to process per packet in Anjana internal processing
anjana.scheduling.threads	2	kerno	Number of threads for batches
anjana.scheduling.threadScheduleSeconds	15	kerno	Delay in seconds between indexing packets
anjana.separatorAttribute	_-	kerno	Character used as a separator for multi-valued attributes in the database
anjana.tot.createCustom	false	kerno	Flag so that, when metadata extraction with a plugin retrieves an attribute not found in the template, it is created as a custom attribute of the object
anjana.waitRetry	10	kerno	Wait time between each retry in case of communication failure during reindexing
anjana.workflow.launchIfCustomChanges	true	kerno	Flag to consider custom attributes when checking for changes in an object to determine whether or not to launch the workflow
ARI_OBJECT_SEPARATOR	:		Character used to separate keywords in the ARI name of files uploaded to Minio or S3
default_language_app	en-US		Default language of the application, value of the i18n_code field from the zeus.languages table
MAX_DECIMAL_PRECISION	16		Maximum number of digits in the decimal part of an input_decimal (or array) allowed
MAX_INTEGER	9223372036854775807		Maximum number for an integer, decimal, array or range type attribute
MAX_LENGTH_TEXT_BD	255		Maximum number of characters allowed in the database for input_text type fields and their multilingual counterparts, such as in workflow validation or adherence request
MAX_LENGTH_TEXT_EDITOR	300000		Maximum number of characters allowed for a text_area, enriched_textarea attribute type and multilingual versions of both
MIN_DECIMAL_PRECISION	0		Minimum number of digits in the decimal part of an input_decimal (or array) allowed
MIN_INTEGER	-9223372036854775808		Minimum number for an integer, decimal, array or range type attribute
MIN_LENGTH_TEXT_EDITOR	1		Minimum number of characters allowed for an input_text, text_area, enriched_textarea attribute type and multilingual versions of all three
MIN_LENGTH_SEARCH_USER	0		Minimum number of characters for the user search to start returning results
solr.module.kerno.collection	kerno	minerva	Name of the Solr collection for Anjana objects
solr.module.kerno.generate	true	minerva	Flag to create the objects collection in Solr, if it does not exist, at startup
solr.module.kerno.replication	1	minerva	SolR replication of the objects collection
solr.module.kerno.shards	1	minerva	SolR sharding of the objects collection
solr.module.recommendations.collection	recommendations	minerva	Name of the Solr collection for Anjana Data assistive pills
solr.module.recommendations.generate	true	minerva	Flag to create the recommendations collection in Solr, if it does not exist, at startup
solr.module.recommendations.replication	1	minerva	SolR replication of the recommendations collection
solr.module.recommendations.shards	1	minerva	SolR sharding of the recommendations collection
solr.multivalued-separator	_-	minerva	Character used to concatenate multi-valued attributes, which must match anjana.separatorAttribute in Kerno
wf.async.waiter	20000	hermes	Wait time in ms for Activiti internal tasks
wf.validation.automatic	true	hermes	Flag to enable automatic validation of tasks without requiring human action

Exceptions

Due to database limitations or the behavior of certain attributes, in some cases the values in AppConfiguration take precedence over those configured in Template Attribute Validations.

Validation in `template_attribute_validations`	Validation in `AppConfiguration`	Prevailing validation
`MAX`	`MAX_INTEGER`	If the MAX value is greater than MAX_INTEGER, the MAX_INTEGER validation takes precedence.
`MIN`	`MIN_INTEGER`	If the MIN value is less than MIN_INTEGER, the MIN_INTEGER validation takes precedence.
`MAX_DECIMAL_PRECISION`	`MAX_DECIMAL_PRECISION`	If the MAX_DECIMAL_PRECISION value is greater than MAX_DECIMAL_PRECISION in `AppConfiguration`, the `AppConfiguration` validation takes precedence.
`MIN_DECIMAL_PRECISION`	`MIN_DECIMAL_PRECISION`	If the value in `Template Attribute Validations` is less than the value in `AppConfiguration`, the MIN_DECIMAL_PRECISION from `AppConfiguration` will take priority.
`MAX_LENGTH`	`MAX_LENGTH_TEXT_EDITOR` or `MAX_LENGTH_TEXT_BD`	If the MAX_LENGTH value in `Template Attribute Validations` exceeds the values configured in `AppConfiguration`, the one defined in the latter prevails: MAX_LENGTH_TEXT_EDITOR, for attributes of type TEXTAREA. MAX_LENGTH_TEXT_BD, for attributes of type INPUT_TEXT or TEXTAREA used in workflow and adherence modals.
`MIN_LENGTH`	`MIN_LENGTH_TEXT_EDITOR`	If the MIN_LENGTH value in `Template Attribute Validations` is less than MIN_LENGTH_TEXT_EDITOR in `AppConfiguration`, the MIN_LENGTH_TEXT_EDITOR from `AppConfiguration` takes precedence.

Adding/Modifying a variable in the `AppConfiguration` table

Adding or modifying a variable involves adding or editing a record in the AppConfiguration table.

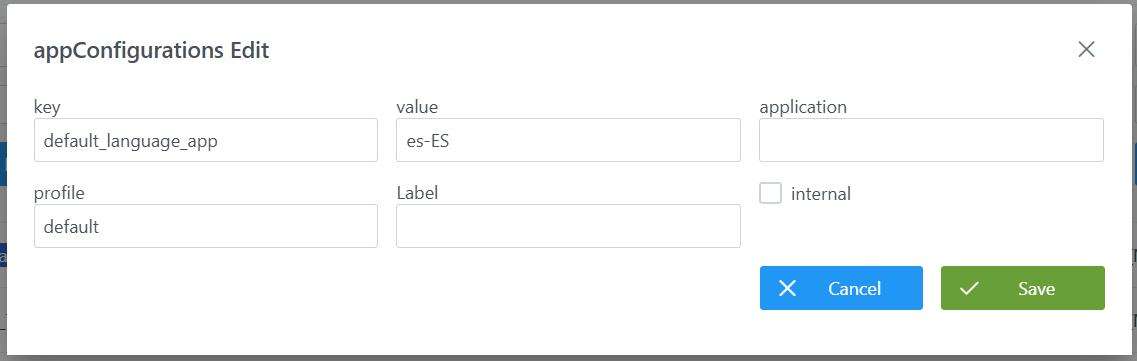

Example of default language configuration in *AppConfiguration*

To add a record from the Configuration Panel:

Click the New button or the Edit Pencil as appropriate.
Fill in the fields:
- Key: key corresponding to one of the records in the available variables table (e.g.: default_language_app to set the default language).
- value: value corresponding to the variable; in the example, the i18n language code configured in Languages (e.g.: es-ES).
- internal: boolean as appropriate (e.g.: false).
- application: value according to the variable as per the available variables table. (e.g.: empty).
- profile: execution profile in which the configured value applies (e.g.: default).
- Label: informational (e.g.: empty).
Click Save to save the record or Cancel to discard.

Notes:

After adding/modifying:
- It is necessary to run the Clear cache action from the Configuration Panel (Actions > Clear cache) for the changes to be applied and visible in the Data Portal.
- In some cases it may be necessary to restart the corresponding microservice (Zeus, Kerno, Minerva…)
Since variables are loaded at startup, the Portuno microservice must be started before other services for the changes to propagate correctly.
If a variable is simultaneously configured in AppConfiguration and in the YAML of a microservice, the configuration that applies is the one in AppConfiguration.
