SAML 2.0 - AZURE

Azure configuration requires two components: an Enterprise Application (for SAML login) and an App Registration (for provisioning API permissions).

Part A: SAML configuration (Enterprise Application)

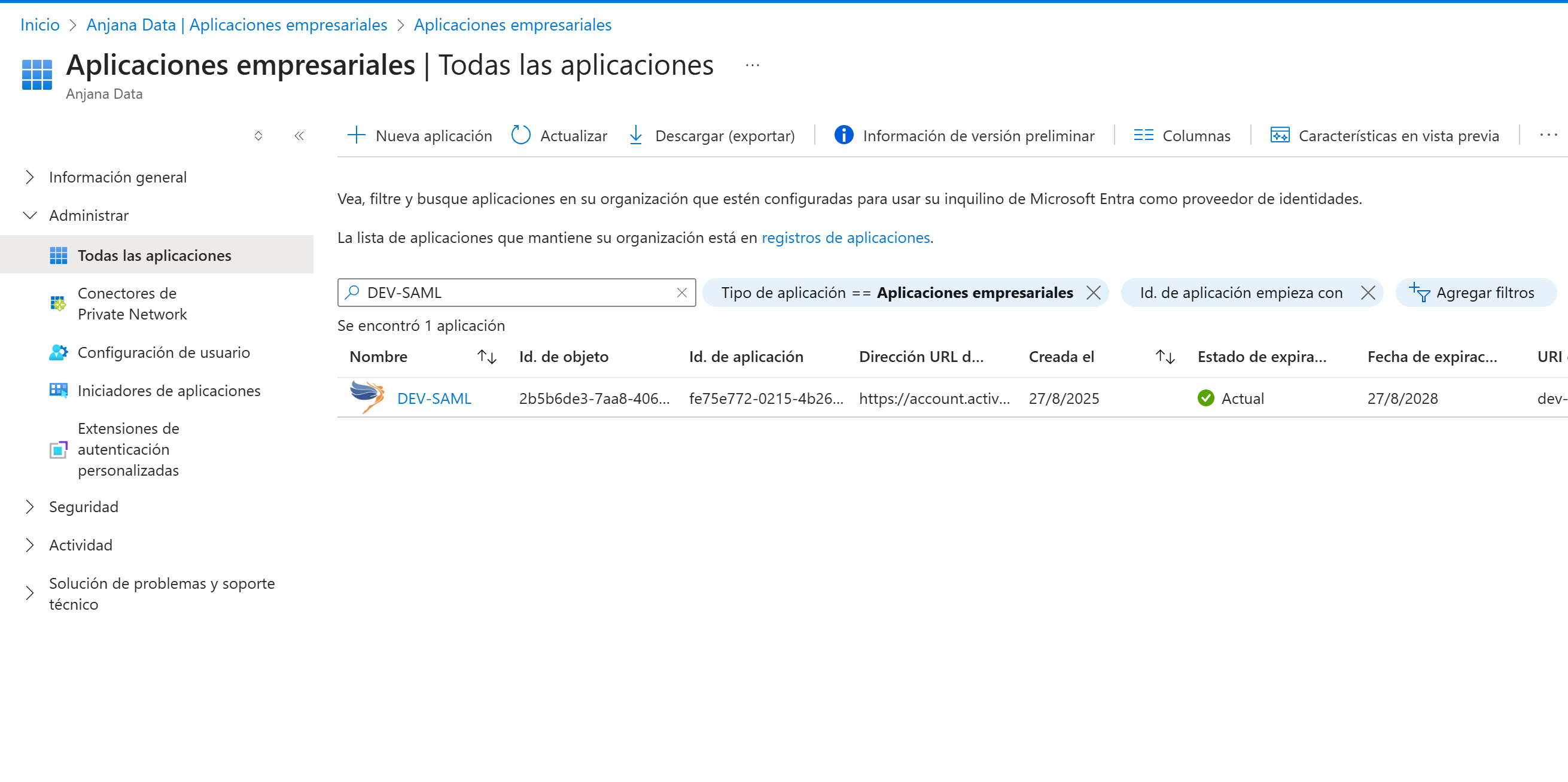

  1. In the Azure portal, go to Azure Active Directory > Enterprise applications.


  1. Click "New application" and then "Create your own application".

  2. Give it a name (e.g. Anjana SAML) and select "Integrate any other application you don't find in the gallery (Non-gallery)".

  3. Once created, go to "Single sign-on" and select SAML.


Data you must provide to Azure (SP Configuration)

Click "Edit" in the "Basic SAML Configuration" section:

  • Identifier (Entity ID): Provide a unique identifier. It must be identical to the value of the entityId field in your yml.

    • Example: anjana-saml-azure

  • Reply URL (Assertion Consumer Service URL): This is the public URL where Azure will send the response. It must use your provider's key.

    • Example (for a azuread provider): https://your-anjana-domain.com/gateway/saml2/sso/azuread


Data Azure provides to you (IdP Configuration)

  • idpMetadataUri: In the "SAML Signing Certificates" section, copy the "App Federation Metadata Url". Paste it into the idpMetadataUri field of your yml.

  • Important: In Properties, make sure "Assignment required?" is set to "Yes".

  • Assign Users: In Users and groups, assign the users or groups that will have access.

Part B: API Configuration (User Provisioning)

  1. Go to Azure Active Directory > App registrations.

  2. Click "New registration" (or use an existing one if you already have one for your APIs).

  3. Give it a name (e.g. Anjana API).


Data Azure provides to you (API Credentials)

  • tenant-id: On the registration's "Overview" page, copy the "Directory (tenant) ID".

  • client-id: On the same page, copy the "Application (client) ID".

  • client-secret: Go to Certificates & secrets, create a "New client secret" and copy the Value (not the ID).

  • service-principal-id: Go back to the "Enterprise Application" (from Part A), go to Properties and copy the "Object ID".


API Permissions

  1. In the "App registration" (the one for the API), go to API permissions.

  2. Click + Add a permission > Microsoft Graph > Application permissions.

  3. Add the following permissions:

    • Application.Read.All

    • AppRoleAssignment.ReadWrite.All

    • User.Read.All

    • GroupMember.Read.All

  4. Crucial: Click the "Grant admin consent for..." button until all permissions have a green tick.

Example application-default.yml file

This example details the SAML-specific properties for Azure. The common properties for all providers can be found at SAML 2.0 (Deprecated)

YAML
security:
  provisioning:
    providers:
      azure-graph:
        # The 'azuread' key must be IDENTICAL to the key used in 'saml2'
        azuread:
          # Identifier of the tenant where users are retrieved and authenticated
          tenant-id: <tenantID>
          # Identifier of the authentication client in the provider
          client-id: <clientID>
          # Secret of the authentication client in the provider
          client-secret: <clientSecret>
          # Identifier of the object representing the application
          service-principal-id: <servicePrincipalID>
